- You are a manufacturer or distributor pump, pipes, pipe, hydraulic or ventilation ducts?
- You are a manufacturer or distributor of pneumatic equipment, or accessories hydraulic system or ventilation?
- You are a manufacturer or distributor of valves, filters, fittings, turbines?
You can see your articles, integrated software mecaflux as lists of elements to be included in the calculations of losses, pumping and ventilation systems.
- Mecaflux users can easily choose their pumps, filters, ducts ... and will benefit from a larger base of data.
- You gain free publicity because users will see your contact details displayed
Send us a table of coefficients of losses and a photo for each product you want to see included in the list of items available in the software.
or, if you already have mecaflux,
-
Build yourself the file to include using the item editor and sending us your file "C:programmes files\mecaflux\singularités"
- How to create a new element in the database available for minor head loss calculation:
The elements editor is available in MECAFLUX:
If you know the minor pressure drop of a an element of your water system or aeraulics, you can save it in your database according to its parameters.
Example: you know the coefficient of head loss from a radiator based on the number of its tubes. To create this element and make it available in the calculation of your networks...

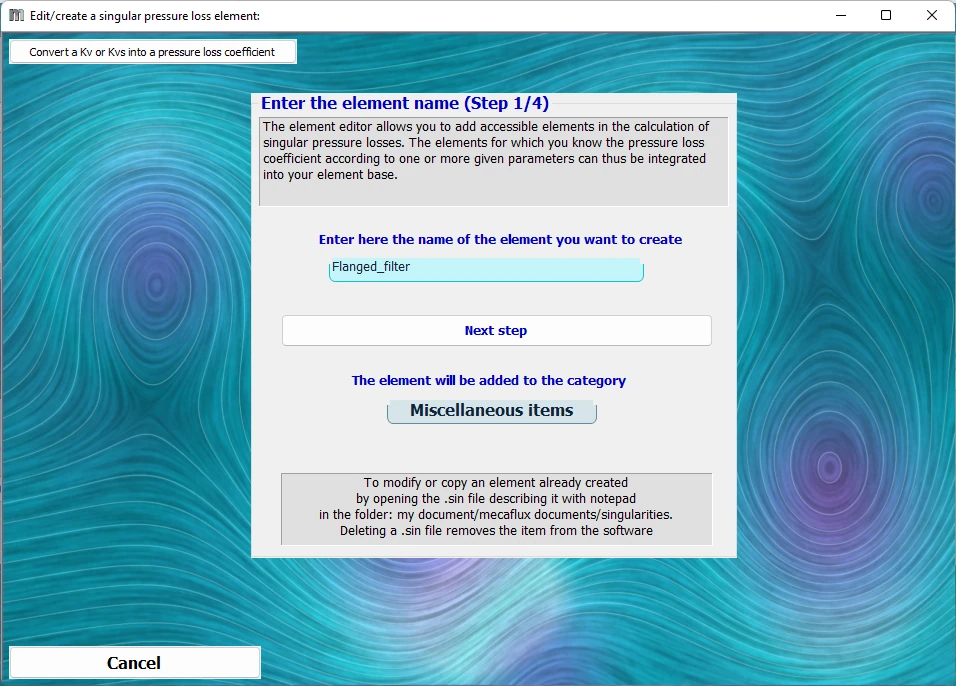

Step 1/4:Simply enter:
- The name of the element: " RADIATOR"

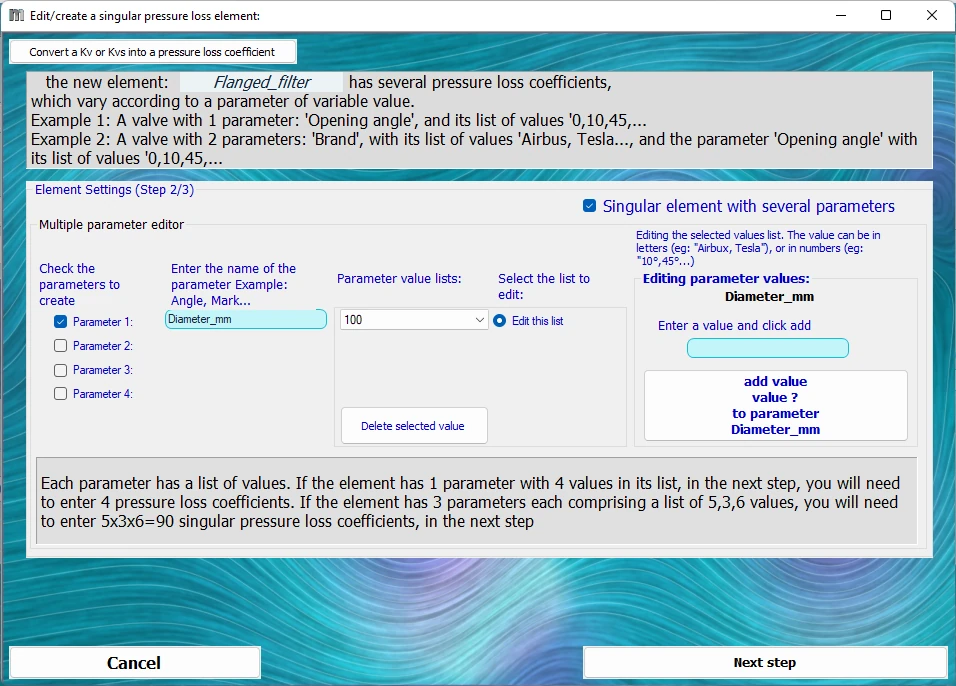

Step 2/4:
- varying the parameter name: "Number of tubes" and
- The values that will be selected for this setting: 5 10 15 20 (sample values!)

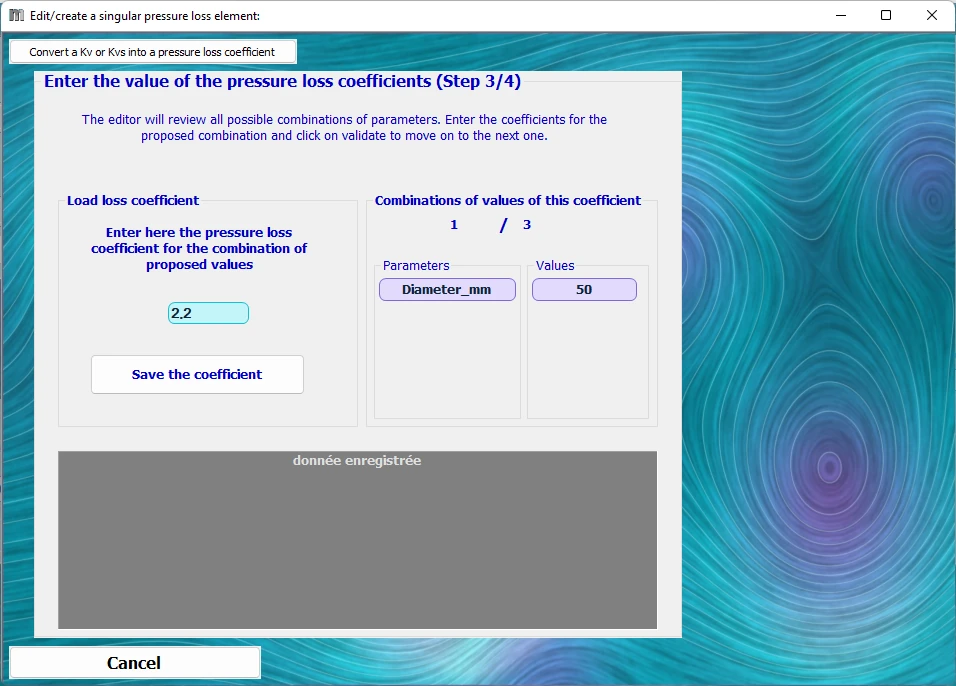

Step 3/4:
- The pressure loss coefficients for these parameters 0.8, 1, 1.2, 1.5 (sample values!)

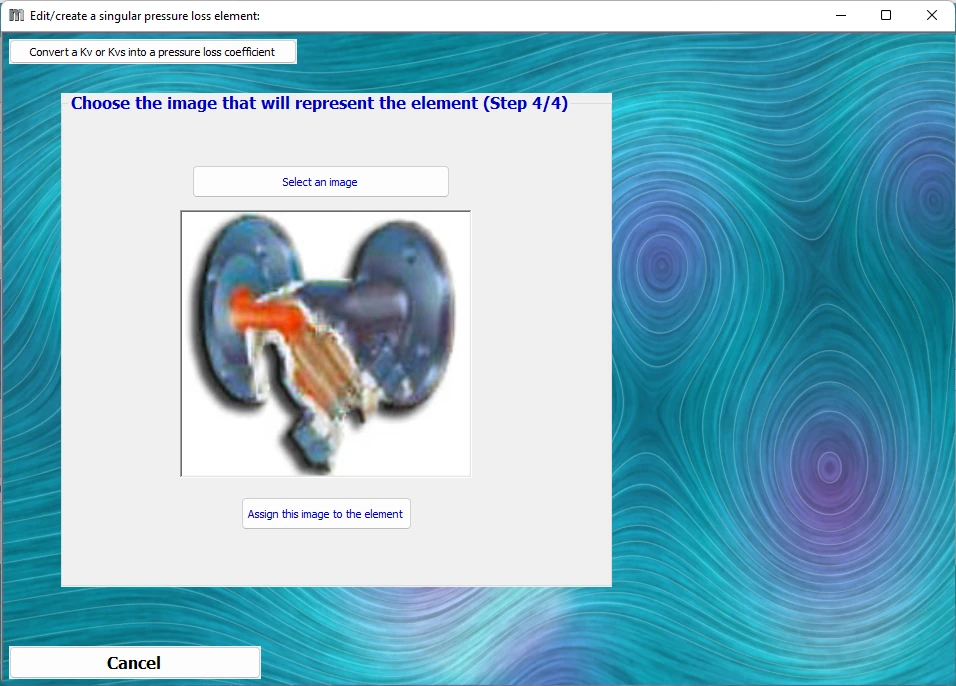

Step 4/4:
- You choose a representative picture of the element and you save it.
- This element will be integrated and available for the calculation of minor head loss
