Frontal surface



The Frontal surface is the perpendicular projected surface according to the trajectory of the fluid ( the surface which the object presents at the fluid). Take a look at the drag force formula

Larger is the surface biger is the drag force .

Caution: for the calculation of the lift force  of the foils  tested in wind tunnels, the given values of Cl are about the surface projected on the ground.





With Mecaflux

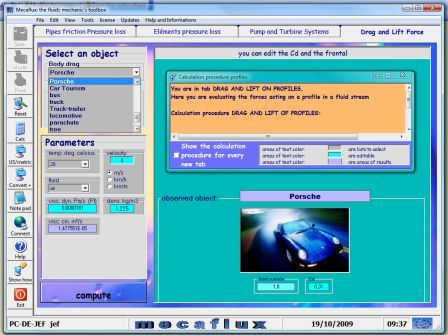

Calculation's example of a car's drag force(aerodynamic resistance), according to its Cd and Frontal surface.

The Cd and the frontal surface of the objects or vehicles proposed in mecaflux is given, but if you prefer to enter your own data you can.
