The editor of pump is in the graphical analysis tool for network because that is where you will use it the most often.

It is possible to create a list of pumps available for research operating points of pump for your network.

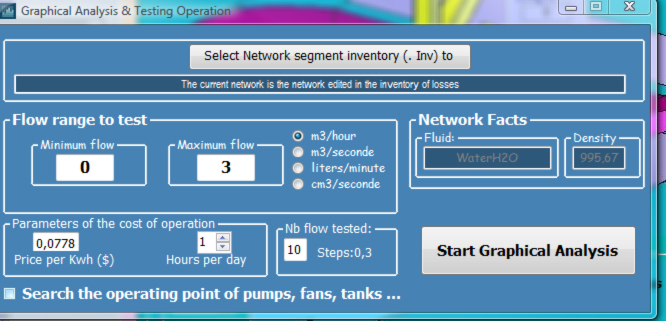

To access the editor open the graphical analysis tool (Tools / internal flows / graphical analysis)

check pumps(down left) and the pomp editor opens . You can enter a feature of your pump or select one from the list of pumps. The operating point of your pump and its Network segment will be calculated when you click to choose a network.

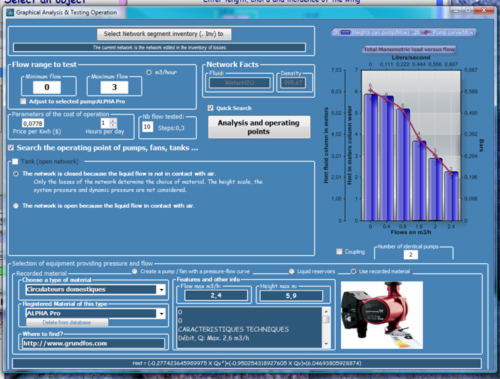

Here we see a home pump pre recorded, but first you'll need to enter the pump as a curve of 6 points of pressure versus flow.

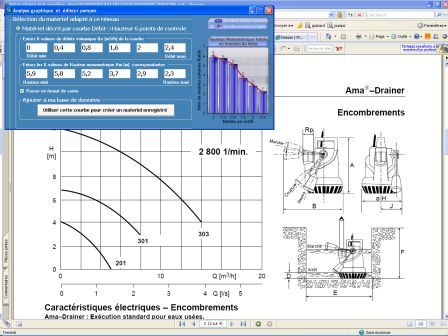

These data manufacturers are generally available on the web or in the manual supplied with the pump .. To create a new pump available in the editor select "material described by curve":

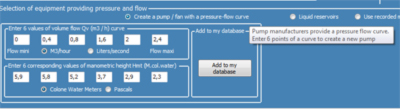

to facilitate the entry point switch input format by clicking on "input format" .you're creating your pump by input of 6 points in your "curve builder". MECAFLUX compute the curve's equation of your pump and the equations of curves couplings.

you only have to save the pump in your database by clicking on Save.

You can enter a name for the address of a manufacturer's website, technical characteristics (simply copy pasted the description on the manufacturer's site in the text window), the pump price and photo for memory.

.
